· Next-Gen Frame: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.
· O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.
· Lightweight Powerhouse: Weighing only 107.7g (O4 Pro Version), this 2.2″ cinewhoop is the perfect gateway for DJI pilots to dive into FPV.
· Freestyle-Tuned Propulsion: The co-developed GF 2218 3-Blade Props and LAVA 1104 | 7200KV Brushless Motors offers unparalleled thrust, while the aerodynamic frame adds an 8–11% boost for aggressive maneuvers.
· Cinematic Stability: The integrated O4 Air Unit Pro Bracket gurantees every frame you captured is perfect.
· Flight Controller: The ultra-light F4 2-3S 20A AIO FC V1 (5.92g) is engineered for crisp digital performance, offering enhanced computing power and rapid response for precise freestyle control.
· New RGB LED Strip: Enhanced visibility for in-flight orientation and a striking visual presence.
· ND Filter Ready: ND/UV filters for O4 Pro let you master any lighting condition.
· Plug-&-Play Tuned: Pre-optimized PIDs for O4 & O4 Pro. Select & fly via OSD.

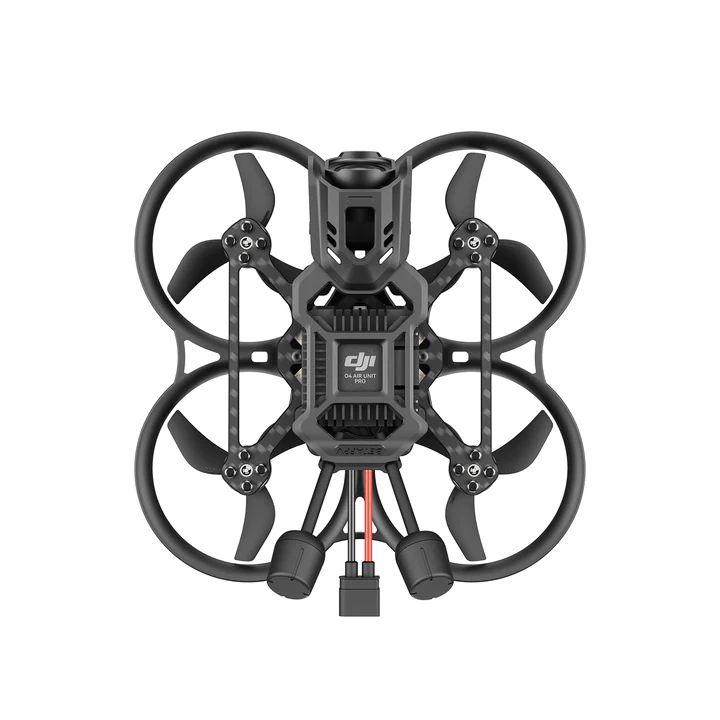

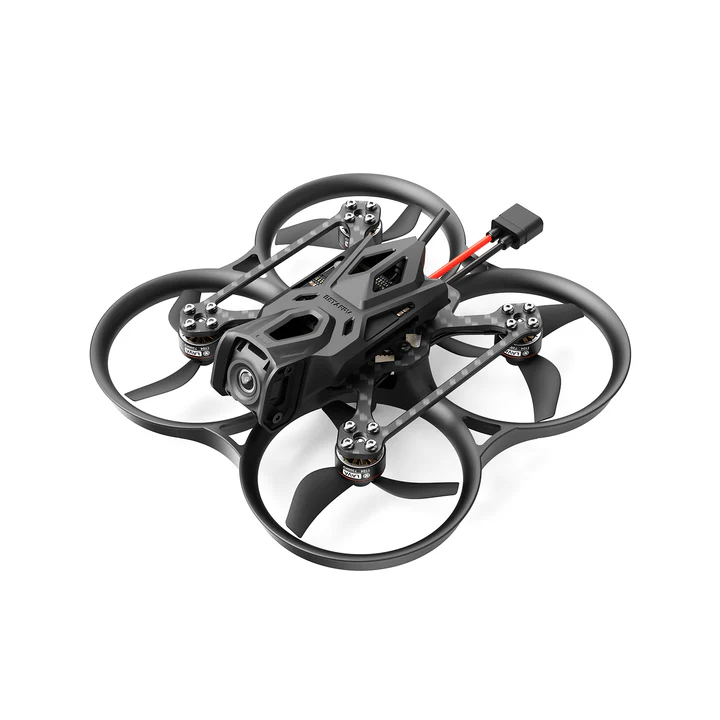

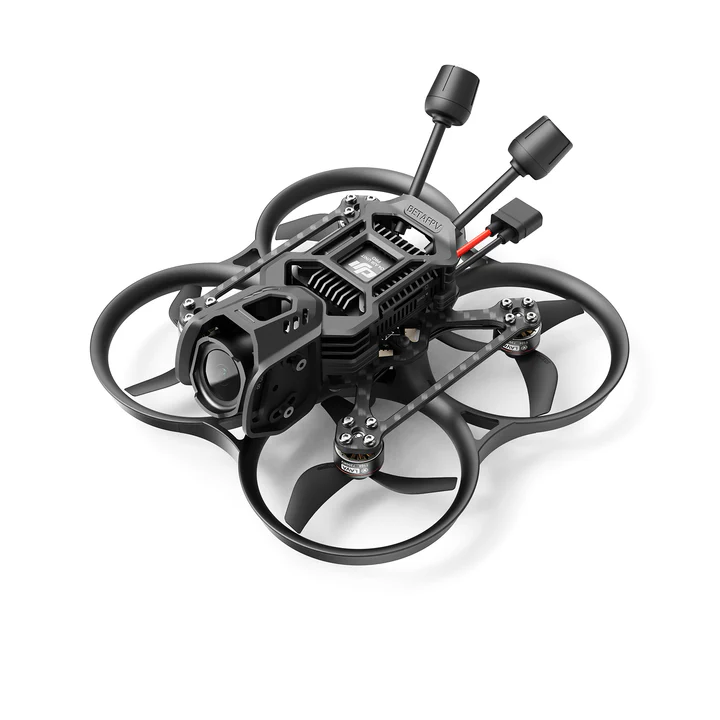

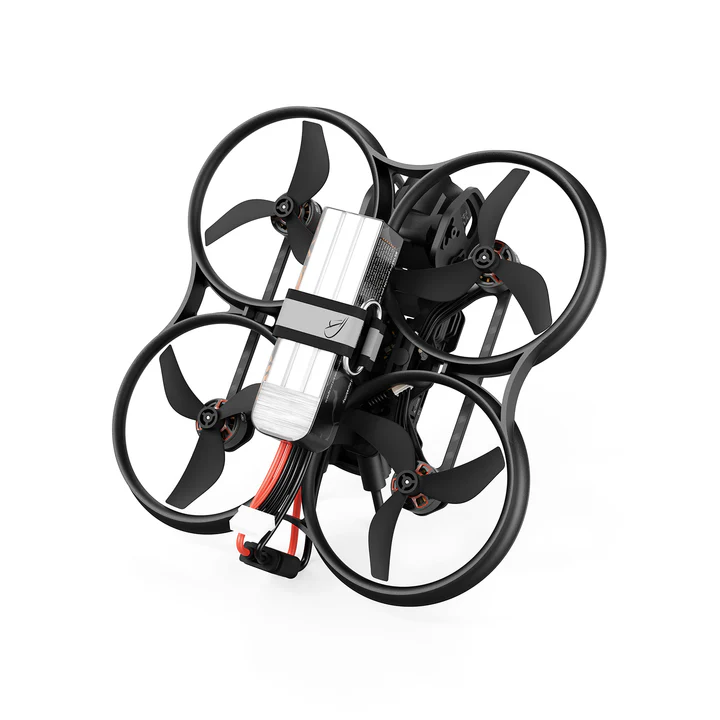

· Item: Pavo20 Pro II Brushless Whoop Quadcopter
· Wheelbase: 93.9mm
· FC: F4 2-3S 20A AIO FC V1

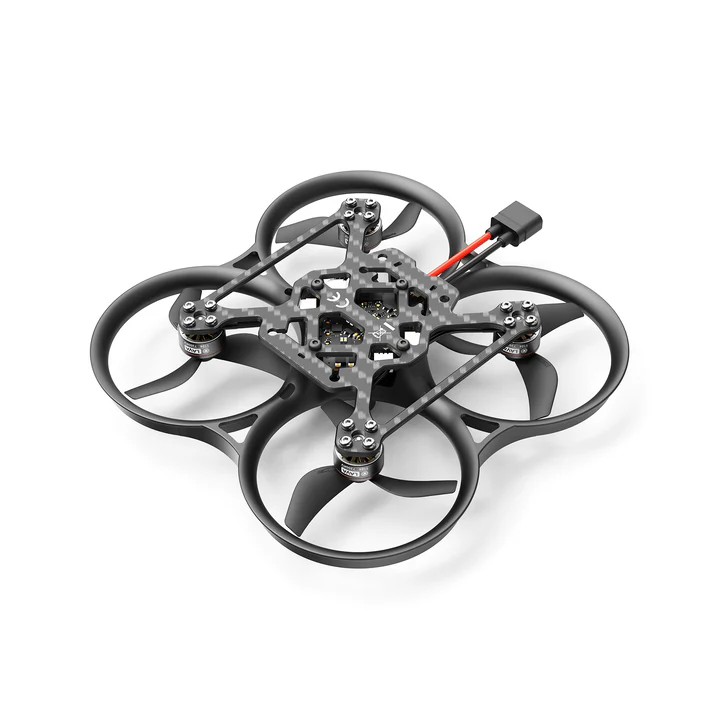

· Frame: Pavo20 Pro II Brushless Frame
· Motor: LAVA Series 1104 | 7200KV Brushless Motors
· Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
· Flight Time: 6'30'' (with LAVA 3S 550mAh Battery)
· RX Version: Serial ELRS, DJI SBUS
· HD VTX Bracket: O4 Air Unit Pro Bracket, O4 Air Unit Bracket II
· Weight: 65.2g (PNP Version), 107.7g (O4 Pro included)
· Battery Connector: XT30
· Battery Slot: 20mm * unlimited height
· Strip: NightFire RGB LED Strip
· Supported VTX: DJI O4 Air Unit Pro, DJI O4 Air Unit
· Camera Filter Installation: Vertical
· Recommended Filter: ND Filter for O4 Pro Camera
· Recommended Battery: LAVA II 3S 580mAh/680mAh Battery, LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery
Cautions:
1. Please correctly connect the battery's positive and negative terminals to prevent drone damage.
2. The O4 Pro Version includes the O4 Pro VTX, while all PNP versions does NOT include the VTX system and must be purchased separately.
